● Material: Natural Rubber R55
● Color: Black
● Use: For AH Rubber Slurry Pump
● Application: For Acidic Slurry
● Impeller: 5-Vanes Closed
● Feasure: Corrosive Resistant
● Part Code: E4147R55
Description:

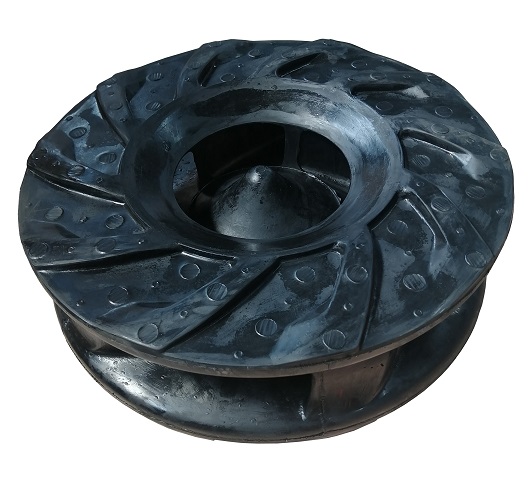

The above shown impeller is a rubber lined slurry pump imepller part number(P/N) E4147R55, and is for slurry pump SHR/100D (4 inch) and SHR/100E (4 inch)
Besides material R55, we have other options like R26, R33 available. The prices are the same and are very reasonable. The rubber impeller is interchangeable with hard metal one, that is to say, if you are using a slurry pump with this rubber impeller, you can change it to metal impeller without any dimension deviations.
Features of Impeller:
Impeller–front and rear shrouds have pump out vanes that reduce recirculation and seal contamination. Hard metal and moulded elastomer impellers are completely interchangeable.Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
When buying a centrifugal pump, we always look for pumps with high efficiency, minimal maintenance and good reliability. One must always consider all these factors, however, one thing that people forget to look at is the selecting the right impeller style for your centrifugal pump.
Closed impellers are the most commonly used impellers in the industry since they can deal with volatile and explosive fluids.The closed impeller is initially really efficient, but with time, loses its efficiency as the clearance of the wear ring increases, whereas the efficiency of an open impeller can be maintained through clearance adjustment.
Our spare parts are 100% interchangeable with the original OEM spare parts. And the wear life is as long as the OEM spare parts.
Applications of Slurry Impellers: Mill Discharge; Low Pressure Tailings; Wet Sand Pumping.
Specifications:
| Natural Rubber R55 | Standard |
| Hardness(Shore A) | 52±3 |
| 300% Stretching Strength(MPa) | ≥4 |
| Tensile Strength(MPa) | ≥21 |
| Elongation at Break(%) | ≥500 |
| Tensile Set at Break(%) | ≤25 |
| Rubber to Metal Bonding Pull Strength(MPa) | ≥5 |
| Akron Abrasion cm3/1.61km | ≤0.08 |
| Acid & Alkali Resistant PH Value(Liquid) | 3-12≤65℃ |
Tag: spare parts for pumps, slurry pump spare parts, slurry pump impellers, warman pump impellers.
