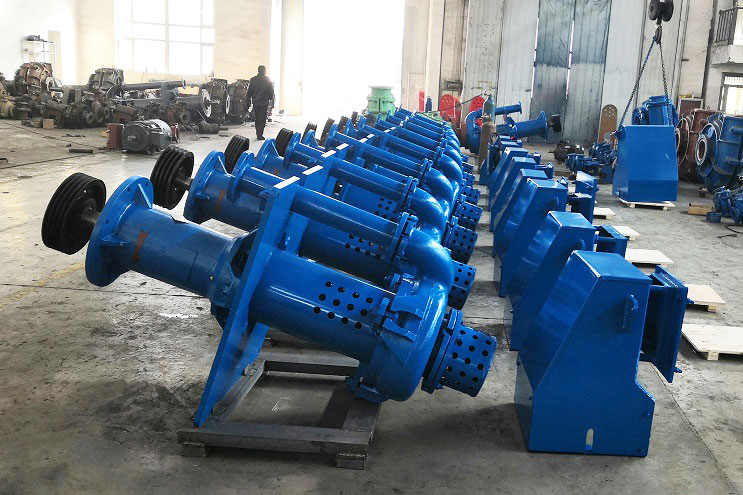

Metal Lined Vertical Slurry Pump SV/40P

Brand: CNSME
Model Number: SV/40P
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set
Delivery Time: 7-14 days
Payment Terms: T/T 100%
Supply Ability: 1000 sets per month
Packaging Details: Wooden crate
Color: Blue Material: A05 Function: It is designed for delivering abrasive, large partcle and high density slurries.

Categories:

Introduction:

Pump Model: SV/40P
The SV heavy duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty catilever design makes the SV sump pump ideally suited for heavy continous handling of abrasive liquids and slurries whilst submerged in sumps or pits. The rugged SV heavy duty sump pumps are available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in:

Minerals Processing
Coal Preparation
Chemical Processing
Effluent Handling
Sand and Gravel
and almost every other tank, pit or hole-in-the-ground slurry handling situation.

Material Construction:

Description Standard Material Optional Material
Impeller A05 A33, A49
Casing A05 A33, A49
Back Liner A05 A33, A49
Shaft Carbon Steel SUS304, SUS316(L)
Discharge Pipe 20# Mild Steel SUS304, SUS316(L)
Column 20# Mild Steel SUS304, SUS316(L)

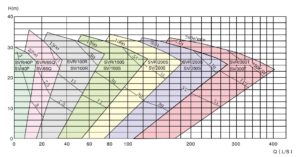

Specifications:

Pump
Model
Allowable
Max. Power
(kw)
Material Clear Water Performance Impeller
Capacity Q Head
H(m)
Speed
n(r/min)
Max.Eff.
η%
Length
Shaft (mm)
No. of
Vanes
Vane Dia.
(mm)
Impeller m3/h
SV/40P 15 Metal
(A05)
19.44-43.2 4.5-28.5 1000-2200 40 900 5 195
SV/65Q 30 23.4-111 5-29.5 700-1500 50 1200 290
SV/100R 75 54-289 5-35 500-1200 56 1500 390
SV/150S 110 108-479.16 8.5-40 500-1000 52 1800 480
SV/200S 110 189-891 6.5-37 400-850 64 2100 550
SV/250T 200 180-1080 10-35 400-750 60 2400 605
SV/300T 200 180-1440 5-30 350-700 62.1 2400 610
