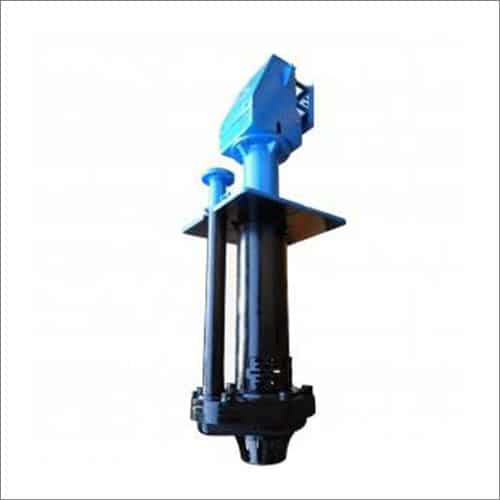

Rubber Lined Vertical Slurry Pump SVR/65Q

Brand: CNSME
Model Number: SVR/65Q
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set
Delivery Time: 10-14 days
Payment Terms: T/T 100% deposit
Packaging Details: Wooden crate

Categories:

Introduction:

Pump Model: SVR/65Q
The SVR heavy duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty catilever design makes the SVR sump pump ideally suited for heavy continous handling of corrosive liquids and slurries whilst submerged in sumps or pits. The rugged SVR heavy duty sump pumps are available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in:
Minerals Processing
Coal Preparation
Chemical Processing
Effluent Handling

and almost every other tank, pit or hole-in-the-ground slurry handling situation. The SVR design with elastomer covered components makes it ideal for: Corrosive slurries; Large Particle sizes; High density slurries; Heavy duties demanding cantilever shafts.

Material Construction:

Description Standard Material Optional Material
Impeller Natural Rubber R55
Casing Natural Rubber R55
Back Liner Natural Rubber R55
Shaft Carbon Steel SUS304, SUS316(L)
Discharge Pipe 20# Mild Steel SUS304, SUS316(L)
Column 20# Mild Steel SUS304, SUS316(L)



Specifications:

Pump
Model
Allowable
Max. Power
(kw)
Material Clear Water Performance Impeller
Capacity Q Head
H(m)
Speed
n(r/min)
Max.Eff.
η%
Length
Shaft (mm)
No. of
Vanes
Vane Dia.
(mm)
Impeller m3/h
SVR/40P 15 Rubber
(R55)
19.44-43.2 4.5-28.5 1000-2200 40 900 5 195
SVR/65Q 30 23.4-111 5-29.5 700-1500 50 1200 290
SVR/100R 75 54-289 5-35 500-1200 56 1500 390
SVR/150S 110 72-504 10-35 500-1000 56 1800 480
