Heavy Duty Sand Gravel Pump SG/200F (8-inch)

Brand: CNSME
Model Number: SG/200F
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set
Delivery Time: 10-14 days
Payment Terms: T/T 100% deposit
Supply Ability: 500 sets per month
Packaging Details: Wooden crate

Categories:

Introduction:

Pump Model: SG/200F

The SG range of dredge and gravel pumps is designed to provide continuous pumping of highly abrasive slurries containing large particles at high maintained efficiencies with low maintenance and ownership costs. The impeller fitted to our SG heavy duty gravel pumps is closed type with three vanes, which allow the impeller to pass large rocks. The heavy duty dredge pump, is specifically designed for low head duties such as hopper dredging and barge loading.



Material Construction:

Description Standard Material Optional Material
Impeller A05
Door A05
Bowl A05
Front Cover A05
Back Liner A05
Shaft Carbon Steel SUS304, SUS316(L)
Shaft Sleeve 3Cr13 SUS304, SUS316(L)
Shaft Seal Gland Packing Seal Expeller Seal, Mechanical Seal



Applications:

Sand and Gravel; Hydraulic Mining; Sugar Beet & Other Root Vegetables; Slag Granulation; Tunnelling.



Specifications:

Pump
Model
S×D
(inch)
Allowable
Max. Power
(kw)
Clear Water Performance Impeller
Capacity Q Head
H(m)
Speed
n(r/min)
Max.Eff.
η%
NPSH
(m)
No. of
Vanes
Vane Dia.
(mm)
m3/h
SG/100D 6×4 60 36-250 5-52 600-1400 58 2.5-3.5 3 378
SG/150E 8×6 120 126-576 6-45 800-1400 60 3-4.5 391
SG/200F 10×8 260 216-936 8-52 500-1000 65 3-7.5 533
SG/250G 12×10 600 360-1440 10-60 400-850 65 1.5-4.5 667
SG/300G 14×12 600 432-3168 10-64 300-700 68 2-8 864
SG/400T 18×16 1200 720-3600 10-50 250-500 72 3-6 1067

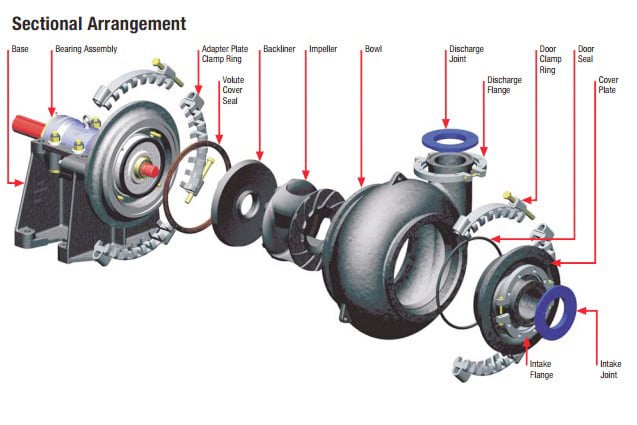

Structure:
