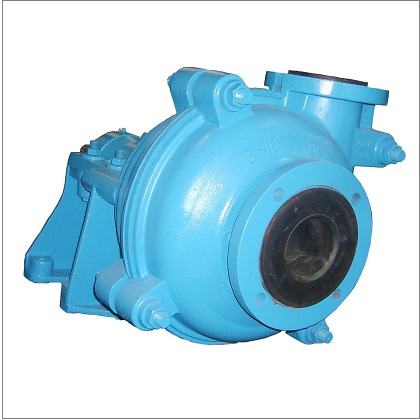

Rubber Lined Mining Slurry Pump SHR/75C (3-inch)

Brand: CNSME
Model Number: SHR/75C
Certificate: CE/ISO
Place of Origin: Hebei, China
Minimum Order Quantity: 1set
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 50 Sets per Month
Packaging Details: Standard export packaging

● Flow rate :79.2-180m3/hr
● Head H(m): 5-34.5m
● Speed: 800-1800rpm
● Efficiency: Max.59%
● Materials: Impeller Natural Rubber
● Impeller:5-Vane Closed Type. D3147R55
● Vane Diameter(mm):245mm
● Power: Max. 30Kw
● Color: Depend on customers’ requirements
● Weight: 236KG
● NPSH (m): 3-5
● Warranty: 1-year Warranty (except wet-end parts)



Introduction:
The advantages of SHR75C rubber lined slurry pump:
1. The anti-corrosive rubber liner has features of a wide range of performance, high efficiency, and high-performance cost ratio.
2. Rubber discharge end is light, thus easy to install and maintain.
3. As the name suggests, anti-corrosive rubber liner is made of rubber which is of high elasticity and chemical stability. The rubber also absorbs noise and vibration, which is more anti-corrosive than high chromium alloy
4. Some metallurgy design and research institutes and universities of science and technology provide lots of technological supports. Thus, our rubber discharge end is trustworthy and effective.
5. A series of quality tests are carried out when the rubber mill discharge liner is being used.



Specifications:

Model SHR/75C
Outlet 3- inch (with Inlet 4- inch)
Capacity 79.2-180m3/h
TDH 5-34.5m
Rated Motor Power 30Kw
Shaft Seal Gland Packing, Metal Expeller, Mechanical Seal
Impeller Alternative Material Polyurethane, Neoprene



Typical Applications:

Tailings
Heavy Mining
Ash Handling
Cyclone Feeds
Pulp and Paper
Corrosive Slurries
Coal Preparation
Mineral Processing
Aggregate Processing
Heavy Refusal Removal



SME SH Slurry pumps are designed for the toughest slurry applications
