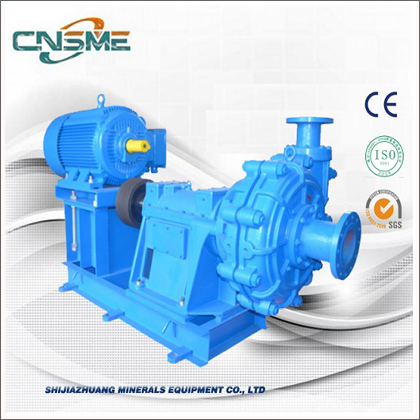

100ZGB Metal Slurry Pump for Power Plants

Brand: CNSME
Model Number: 100ZGB
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set
Delivery Time: 7-10 days
Payment Terms: T/T 100% deposit
Supply Ability: 30 Sets per Month
Packaging Details: Plywood Crate

Categories:

● Material: Chrome Alloy A05
● Impeller: 5-Vane Closed
● Use: Coal Washery Plant Slurry Pump
● Stage: Single Stage
● Lubrication: Oil
● Speed: Fixed Rotation
● Model: 100ZGB
● Weight: 3000kgs



Introduction:
ZGB series slurry pump is a horizontal, single stage, single suction, cantilever, double pump shell, centrifugal slurry pump.
Over-current components can exchange ZGB and ZGBP type slurry pump the same caliber. Dimensions are identical. The transmission part ZGB series slurry pump adopt open standards thin oil lubrication carrier, and is provided with two groups of cooling sys,.
When necessary, cooling water.

Shaft seal type ZGB series slurry pump has two types: expeller seal combined with packing and mechanical seals.



Specifications:

Model 100ZGB
Capacity 50-400m3/h
TDH 40-100m
Max. Allowable Motor Power 300Kw
Speed 980r/min or 1480r/min
Max. Efficiency 78%
Lubrication Oil

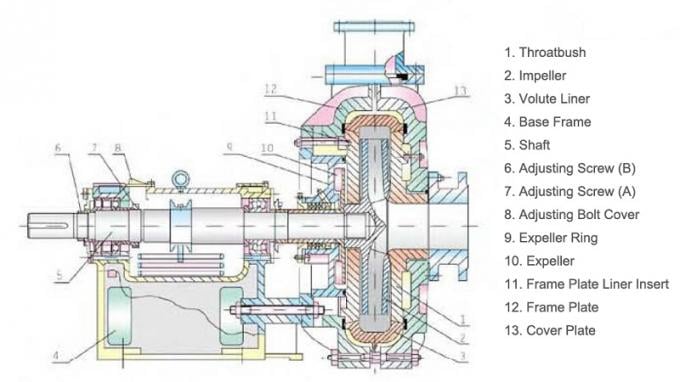

Construction of ZGB Slurry Pump:



Standard Material of Wet-end Parts: Hi-Chrome Alloy A05



Typical Applications:
Bottom/Fly Ash
Coal Washing
Power Plants
Potash Fertilizer Plant
Iron Ore Dressing Plant
Gold Mine Concentration Plant

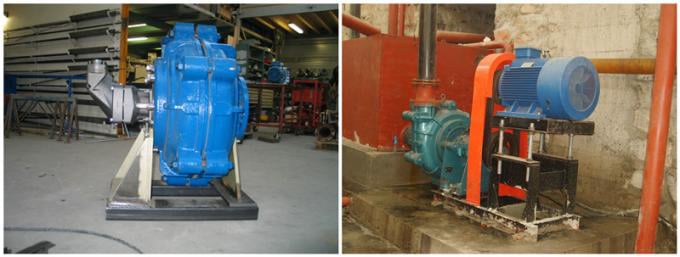

Projects of ZGB Heavy Duty Slurry Pump:



Tag:
solids handling pump, abrasive slurry pump
