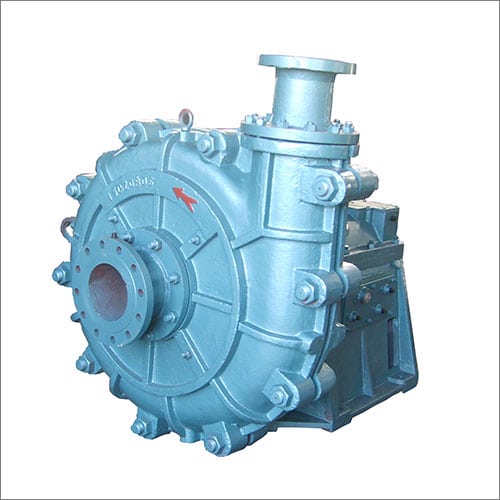

ZGB Heavy Duty Centrifugal Slurry Pump

Brand: CNSME
Model Number: 100ZGB
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 100 Sets per Month
Packaging Details: Standard export packaging

Categories:

● Flow rate :50-400m3/hr
● Head H(m): 40-100
● Speed: 980-1480rpm
● Efficiency:Max78%
● Materials: Impeller A05
● Power: Max 300Kw
● Impeller Dia(mm):500
● Color: Depend on customers’ requirements
● Warranty: 1 year Warranty (except wet-end parts)



Introduction:

ZGB is our successful abrasive resistant slurry handling pump and combines effective expeller seal with good hydraulic efficiency. From design to installation and beyond, SME engineers are available to give advice on your slurry pumping needs and problems. The ZGB range has been designed to offer a wide choice of pump sizes to suit more slurry pumping applications.

ZGB series slurry pump is a horizontal, single stage, single suction, cantilever, double pump shell, centrifugal slurry pump.
Over-current components can exchange ZGB and ZGBP type slurry pump the same caliber. Dimensions are identical. The transmission part ZGB series slurry pump adopt open standards thin oil lubrication carrier, and is provided with two groups of cooling sys,.
When necessary, cooling water.

Shaft seal type ZGB series slurry pump has two types: expeller seal combined with packing and mechanical seals.



Specifications:

Model 100ZGB
Capacity 50-400m3/h
TDH 40-100m
Max. Allowable Motor Power 300Kw
Speed 980r/min or 1480r/min
Max. Efficiency 78%
Lubrication Oil



Construction of ZGB Slurry Pump:



Materials:

Description of Parts Material Material Code
Pump Body, Split-Casing Grey Iron G20/G21
Ductile Iron D20/D21
Impeller, Volute,
Wear Liners, Expeller,
Expeller Ring,
Stuffing Box
27% High Chrome A05
15/3 Chrome/Moly Iron A07
Corrosion-resistant 35% Chrome A33
28% High Chrome, Low Carbon A49
Shaft 304 Stainless Steel C21
316 Stainless Steel C23
Shaft Sleeve 304 Stainless Steel C21
316 Stainless Steel C23
Aluminum Oxide Coating, White J04
Chrome Oxide Coating, Black J05



Standard Configuration:

Shaft seal type: Expeller Seal
Discharge direction: Upright
Connection type: Customized (Coupling or Belts)
Pump color: Blue
Package: Fumigation-free wooden Box



Typical Applications:
Bottom/Fly Ash
Coal Washing
Power Plants
Potash Fertilizer Plant
Iron Ore Dressing Plant
Gold Mine Concentration Plant

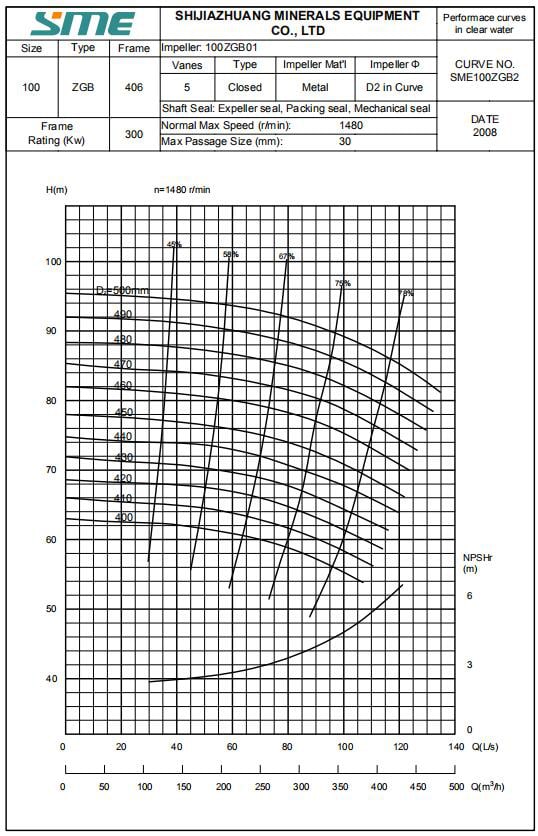

Performance Curve:

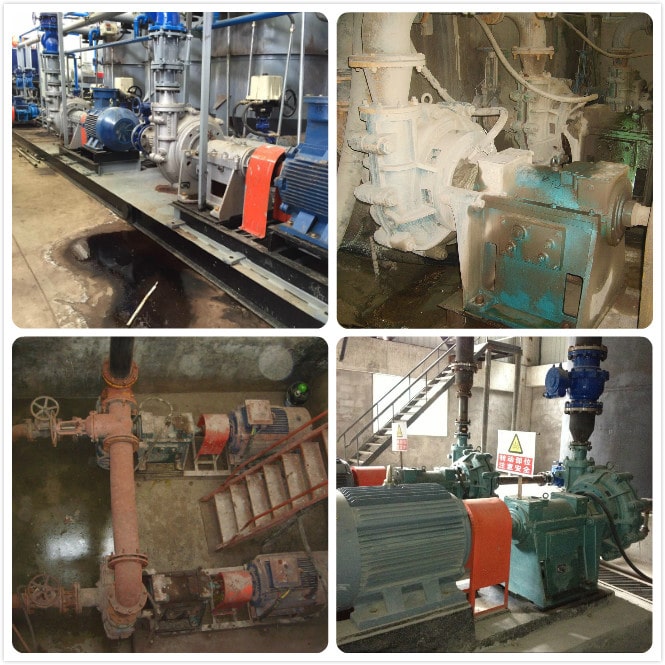

Projects of ZGB Heavy Duty Slurry Pump:
