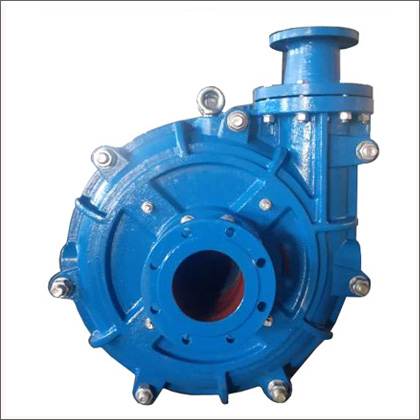

Hard Metal High Pressure Slurry Pump 200ZJ

Brand: CNSME
Model Number: 200ZJ
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set
Delivery Time: 10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 30 Sets per Month
Packaging Details: Plywood Crate

Categories:

Introduction:
At SME we understand the importance of easy and predictable maintenance, and so the ZJ pump range was designed with these thoughts in mind. Alignment features throughout ensure all components are in exact alignment along the pump shaft from drive coupling to the throatbush.
Large robust bearings that can run at high speed.
Rigid overhung shaft with short overhang and large diameter shaft for minimum deflection, and improved reliability of mechanical seals.

Rough castings will be transferred into the machining shop after they are inspected qualified. At Shijiazhuang Minerals Equipment Co. Ltd, you`ll find more than 20 sets of machining equipments including vertical lathe, round lathe, boring and milling lathe, CNC lathe, radial drilling machine and cylindrical grinder, which makes it possible to machine spare parts with a maximum diameter of 2.5 meters. Our machining team consists of the best engineers in the slurry pump business and we guarantee the machining accuracy of the products. The finished spare parts cannot be warehoused until they are inspected qualified and perfect.

Specifications:

Model 200ZJ
Capacity 199-976m3/h
TDH 13-133.7m
Max. Allowable Motor Power 185/250/315/355/560Kw
Speed 490-980r/min
Max. Efficiency 83.5%
Lubrication Oil



Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

Typical Applications:
Bottom/Fly Ash
Coal Washing
Power Plants
Potash Fertilizer Plant
Iron Ore Dressing Plant
Gold Mine Concentration Plant

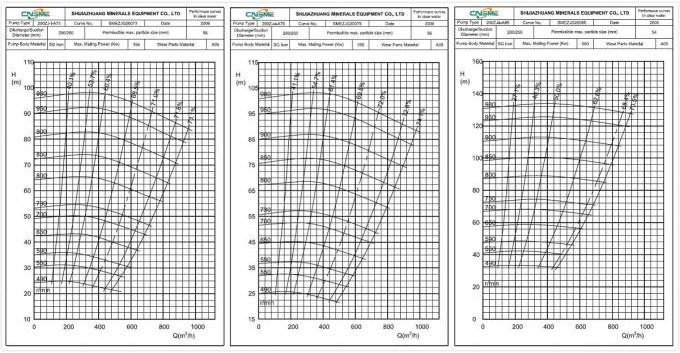

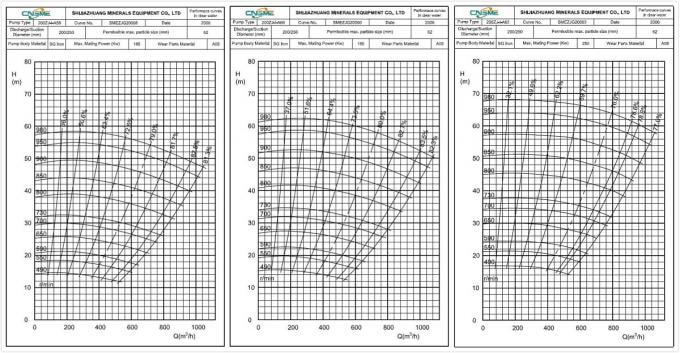

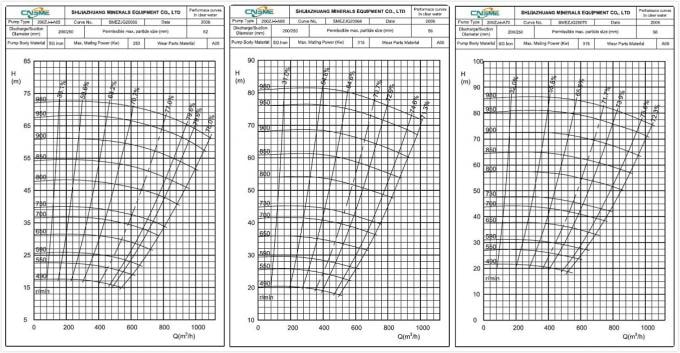

Performance Curve:

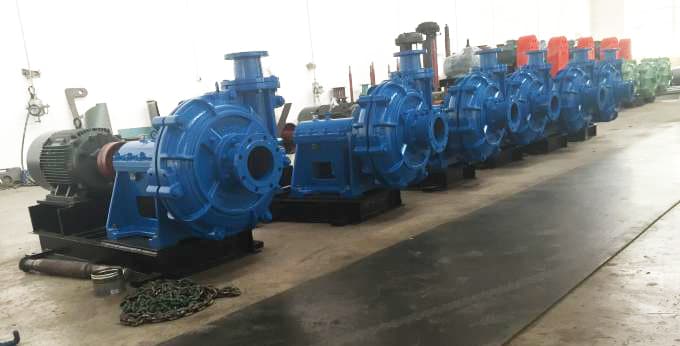

Orders of ZJ Severe Duty Slurry Pumps:
