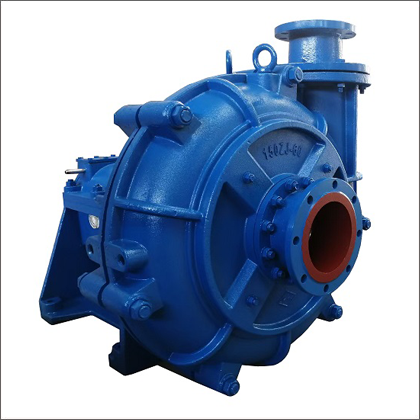

150ZJ-A60 High Pressure Slurry Pump

Brand: CNSME
Model Number: 200ZJ
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set
Delivery Time: 10 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 30 Sets per Month
Packaging Details: Plywood Crate

Categories:

Introduction:

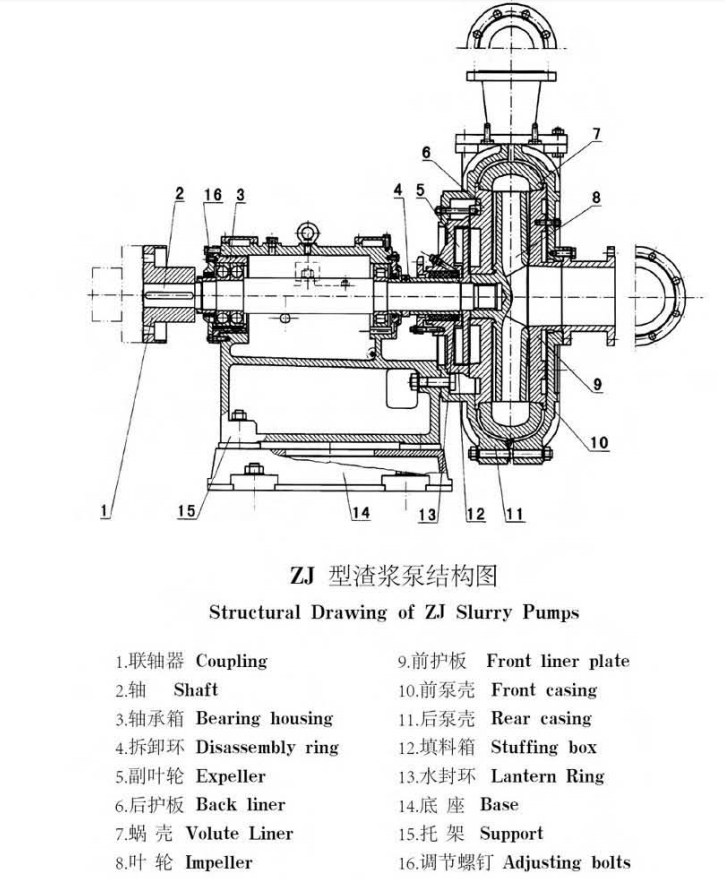

At SME we understand the importance of easy and predictable maintenance, and so the ZJ pump range was designed with these thoughts in mind. Alignment features throughout ensure all components are in exact alignment along the pump shaft from drive coupling to the throatbush.
Large robust bearings that can run at high speed.
Rigid overhung shaft with short overhang and large diameter shaft for minimum deflection, and improved reliability of mechanical seals.

Rough castings will be transferred into the machining shop after they are inspected qualified. At Shijiazhuang Minerals Equipment Co. Ltd, you`ll find more than 20 sets of machining equipments including vertical lathe, round lathe, boring and milling lathe, CNC lathe, radial drilling machine and cylindrical grinder, which makes it possible to machine spare parts with a maximum diameter of 2.5 meters. Our machining team consists of the best engineers in the slurry pump business and we guarantee the machining accuracy of the products. The finished spare parts cannot be warehoused until they are inspected qualified and perfect.

Mantenance:

In order for ZJ series slurry pumps to operate safely and reliably, and to give full play to the efficiency of the equipment, daily maintenance and the use of correct repair and disassembly methods are very important. Therefore, according to the characteristics of ZJ series slurry pumps, we propose the following maintenance and repair requirements for the users reference.

The whole machine of ZJ series slurry pump has been adjusted before leaving the factory. The user does not need to dismantle the unused pump within 6 months after the purchase. Only check whether the rotation is flexible, whether there is rust and whether oil is needed. Add packing before use.

Specifications:

Model 150ZJ-A60
Capacity 200-500m3/h
TDH 15-62m
Max. Allowable Motor Power 160Kw
Speed 980r/min
Max. Efficiency 75.9%
Lubrication Oil



Standard Material of Wet-end Parts: Hi-Chrome Alloy A05

Typical Applications:
Bottom/Fly Ash
Coal Washing
Power Plants
Potash Fertilizer Plant
Iron Ore Dressing Plant
Gold Mine Concentration Plant

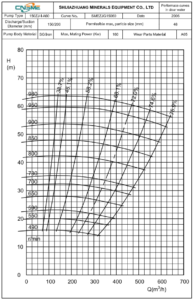

Performance Curve:

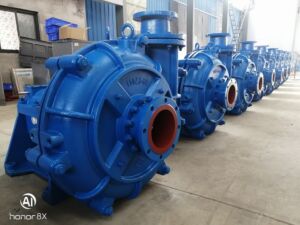

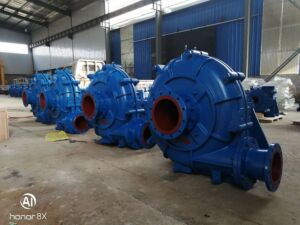

Orders of ZJ Severe Duty Slurry Pumps:
