General Introduction:
▶SME rubber lined slurry pumps are designed for heavy-duty corrosive slurries.
▶This pump is perfect for difficult mill duties. It has a long wear life and is extremely cost-efficient. The use of effective liners makes this pump easy to maintain.
▶This is a heavy-duty slurry pump that is extremely durable and easy to maintain. It is highly efficient and corrosion and erosion resistant
▶Applications like fine tailings, coal, heavy slurry, Ni-acid slurry, Phosphoric acid, process chemical, pulp, and paper.
Specifications:
| Pump Range | 1-inch to 12-inch |
| Capacity | up to 2520m3/h |
| Total Discharge Head | up to 52m |
| Temperature | 1-100°C |
| Pump Model |
S×D (inch) |
Allowable Max. Power (kw) |
Material | ClearWater Performance | Impeller | ||||||
| Capacity Q | Head H(m) |
Speed n(r/min) |
Max.Eff. η% |
NPSH (m) |
No. of Vanes |
Vane Dia. (mm) |
|||||
| Impeller | m3/h | l/s | |||||||||
| SHR/25B | 1.5×1 | 15 | Rubber (R55) |
10.8-25.2 | 3-7 | 7-52 | 1400-3400 | 35 | 3 | 152 | |
| SHR/40B | 2×1.5 | 15 | 25.2-54 | 7-15 | 5.5-41 | 1000-2600 | 50 | 2.5-5 | 5 | 178 | |
| SHR/50C | 3×2 | 30 | 36-75.6 | 10-21 | 13-39 | 1300-2100 | 2-4 | 213 | |||
| SHR/75C | 4×3 | 30 | 79.2-180 | 22-50 | 5-34.5 | 800-1800 | 59 | 3-5 | 245 | ||
| SHR/75D | 4×3 | 60 | 245 | ||||||||

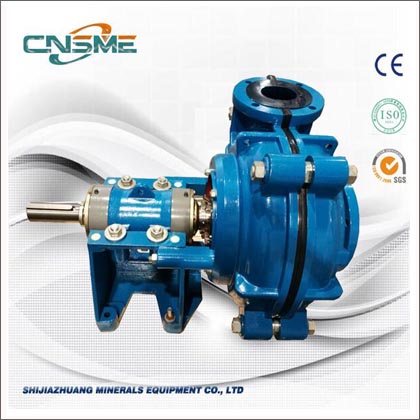

| SHR/100D | 6×4 | 60 | 144-324 | 40-90 | 12-45 | 800-1350 | 65 | 3-5 | 365 | ||
| SHR/100E | 6×4 | 120 | 365 | ||||||||
| SHR/150E | 8×6 | 120 | 324-720 | 90-200 | 7-49 | 400-1000 | 65 | 5-10 | 510 | ||
| SHR/150F | 8×6 | 260 | 510 | ||||||||
| SHR/150R | 8×6 | 300 | 510 | ||||||||
| SHR/200F | 10×8 | 260 | 540-1188 | 200-450 | 7-45 | 300-650 | 80 | 2.5-7.5 | 686 | ||
| SHR/200ST | 10×8 | 560 | 540-1188 | 200-450 | 7-45 | 300-650 | 80 | 2.5-7.5 | 686 | ||
| SHR/250F | 12×10 | 260 | 720-1620 | 320-700 | 13-14 | 300-500 | 79 | 3-8 | 762 | ||
| SHR/250ST | 12×10 | 560 | 720-1620 | 320-700 | 13-14 | 300-500 | 79 | 3-8 | 762 | ||
| SHR/300F | 14×12 | 260 | 1152-2520 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 965 | ||
| SHR/300ST | 14×12 | 560 | 1152-2520 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 965 | ||
Structure:
Materials:
| Description of Parts | Material | Material Code |
| Pump Body, Split-Casing | Grey Iron | G20/G21 |
| Ductile Iron | D20/D21 | |
| Impeller, Inner Liners | Natural Rubber | R55 |
| Premium Black Natural Rubber | R33 | |
| Black Soft Rubber | R26 | |
| Black Natural Rubber | R08 | |
| Shaft | 304 Stainless Steel | C21 |
| 316 Stainless Steel | C23 | |
| Shaft Sleeve | 304 Stainless Steel | C21 |
| 316 Stainless Steel | C23 | |
| Aluminum Oxide Coating, White | J04 | |
| Chrome Oxide Coating, Black | J05 |
Driven Type:
DC(z): The pump and the engine are directly connected by a coupling.
Belt-driven Types: The pump and the engine is connected by pulleys and belts — CV, CR(z), ZV(z).
