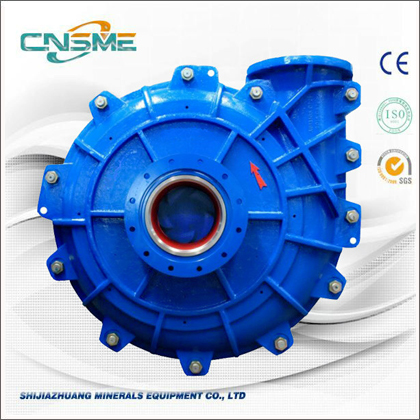

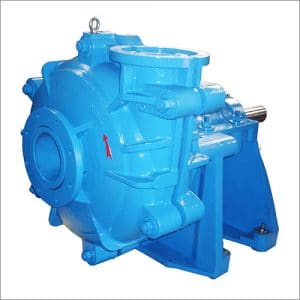

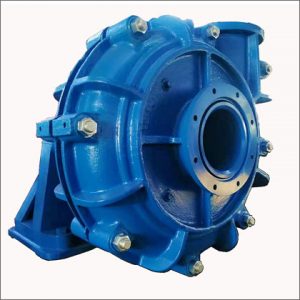

SH Series Hard Metal Lined Heavy Duty Slurry Pumps

Brand: CNSME
Model Number: SH/200F
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 30 Sets per Month
Packaging Details: Standard export packaging
Payment Terms: T/T,Western Union
Supply Ability: 100 Sets per Month
Packaging Details: Standard export packaging

General Introduction:

▶Our horizontal slurry pumps are designed for heavy duty applications such as mining, minerals processing, mill discharge, power plants, tailings and other industrial applications, for maximum abrasion, erosion and corrosion resistance.

▶The pumps are in a wide range of sizes, available with both high chrome and ruber wearing parts. Components like impeller and volute come in a range of hard metal types and elastomer to suit the specific application.

▶Different shaft seal types are available to suit every requirement, including gland packing seal, expeller seal and mechanical seal.

▶Our metal lined slurry pumps are designed for heavy duty industrial applications, to handle the most arduous slurries.

▶Wear resistant cast alloys are used for slurry pump liners and impellers where conditions are not suited to rubber, such as with coarse or sharp edged particles, or on duties having high impeller peripheral velocities or high operating temperatures.



Specifications:

Pump
Model
S×D
(inch)
Allowable
Max. Power (kw)
Material Clear Water Performance Impeller
Capacity  Q Head
H(m)
Speed
n(r/min)
Max.Eff.
η%
NPSH
(m)
No. of
Vanes
Vane Dia.
(mm)
Impeller m3/h l/s
SH/25B 1.5×1 15 Metal
(A05)
12.6-28.8 3.5-8 6-68 1200-3800 40 2-4 5 152
SH/40B 2×1.5 15 32.4-72 9-20 6-58 1200-3200 45 3.5-8 184
SH/50C 3×2 30 39.6-86.4 11-24 12-64 1300-2700 55 4-6 214
SH/75C 4×3 30 86.4-198 24-55 9-52 1000-2200 71 4-6 245
SH/75D 4×3 60 245
SH/100D 6×4 60 162-360 45-100 12-56 800-1550 65 5-8 365
SH/100E 6×4 120 365
SH/150E 8×6 120 360-828 100-230 10-61 500-1140 72 2-9 510
SH/150F 8×6 260 510
SH/150R 8×6 300 510
SH/200F 10×8 260 612-1368 170-380 11-61 400-850 71 4-10 686
SH/200ST 10×8 560 612-1368 170-380 11-61 400-850 71 4-10 686
SH/250F 12×10 260 936-1980 260-550 7-68 300-800 82 6 762
SH/250ST 12×10 560 936-1980 260-550 7-68 300-800 82 6 762
SH/300ST 14×12 560 1260-2772 350-770 13-63 300-600 77 3-10 965
SH/350TU 16×14 1200 1368-3060 380-850 11-63 250-550 79 4-10 1067



Applications:

Heavy duty slurry pumping applications

Mining and minerals processing

Mine refuse and tailings

Mill discharge

Cyclone feed

Sand and aggregates



Materials:

Description of Parts Material Material Code
Pump Body, Split-Casing Grey Iron G20/G21
Ductile Iron D20/D21
Impeller, Volute,
Wear Liners, Expeller,
Expeller Ring,
Stuffing Box
27% High Chrome A05
15/3 Chrome/Moly Iron A07
Corrosion-resistant 35% Chrome A33
28% High Chrome, Low Carbon A49
Shaft 304 Stainless Steel C21
316 Stainless Steel C23
Shaft Sleeve 304 Stainless Steel C21
316 Stainless Steel C23
Aluminum Oxide Coating, White J04
Chrome Oxide Coating, Black J05



Driven Type:

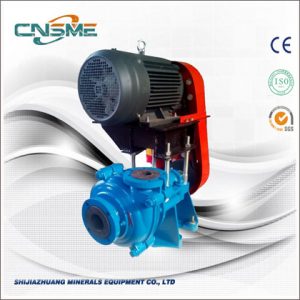

DC(z): The pump and the engine is directlyconnetced by a coupling.

Belt-driven Types: The pump and the engine is connetced by pulleys and belts — CV, CR(z), ZV(z).
