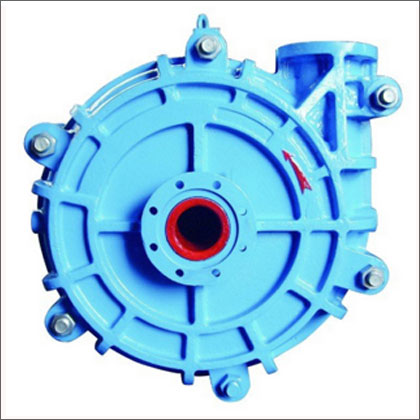

SBH Series High Pressure Heavy Duty Slurry Pump

Brand: CNSME
Model Number: SBH/75E
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set
Delivery Time: 7-15 working days
Payment Terms: T/T, L/C
Supply Ability: 30 Sets per Month
Packaging Details: Standard export packaging
Payment Terms: T/T,Western Union
Supply Ability: 100 Sets per Month
Packaging Details: Standard export packaging

General Introduction:

▶Our horizontal slurry pumps are designed for heavy duty applications such as mining, minerals processing, mill discharge, power plants, tailings and other industrial applications, for maximum abrasion, erosion and corrosion resistance.

▶The pumps are in a wide range of sizes, available with both high chrome and ruber wearing parts. Components like impeller and volute come in a range of hard metal types and elastomer to suit the specific application.

▶Different shaft seal types are available to suit every requirement, including gland packing seal, expeller seal and mechanical seal.

▶Our metal lined slurry pumps are designed for heavy duty industrial applications, to handle the most arduous slurries.

▶Wear resistant cast alloys are used for slurry pump liners and impellers where conditions are not suited to rubber, such as with coarse or sharp edged particles, or on duties having high impeller peripheral velocities or high operating temperatures.

▶The high head (high pressure) pumps are suitable for heavy duty applications where require a higher head per stage or higher pressure.

▶They are mainly used for long distance transportation or other applications where more than one pump is required.

▶SBH slurry pump liners were designed to produce high heads per stage at high pressures.



Specifications:

Pump
Model
S×D
(inch)
Allowable
Max. Power
(kw)
Material Clear Water Performance Impeller
Capacity  Q Head
H(m)
Speed
n(r/min)
Max.Eff.
η%
NPSH
(m)
No. of
Vanes
Vane Dia.
(mm)
Impeller m3/h l/s
SBH/25C 1.5×1 30 Metal
(A05)
16.2-34.2 4.5-9.5 25-92 1400-2200 20 2-5.5 5 330
SBH/50D 3×2 60 68.4-136.8 19-38 25-87 850-1400 47 3-7.5 457
SBH/75E 4×3 120 126-252 35-70 12-97 600-1400 50 2-5 508
SBH/100F 6×4 260 324-720 90-200 30-118 600-1000 64 3-8 720
SBH/100S 6×4 560 324-720 90-200 30-118 600-1000 64 3-8 720
SBH/150S 8×6 560 468-1008 130-280 20-94 500-1000 65 4-12 711



Materials:

Description of Parts Material Material Code
Pump Body, Split-Casing Grey Iron G20/G21
Ductile Iron D20/D21
Impeller, Volute,
Wear Liners, Expeller,
Expeller Ring,
Stuffing Box
27% High Chrome A05
28% High Chrome, Low Carbon A49
Shaft 304 Stainless Steel C21
316 Stainless Steel C23
Shaft Sleeve 304 Stainless Steel C21
316 Stainless Steel C23
Aluminum Oxide Coating, White J04
Chrome Oxide Coating, Black J05



Applications:

Ball/rod mill discharge

Coarse sand/tailings

Minerals concentrate

Heavy media

Bottom/fly ash, lime grinding



Features and Advantages:

▶Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime

▶Large, open internal passages designed to reduce internal velocities, maximize wear life and lower operating costs

▶Minimal shaft/impeller overhang reduces shaft deflection and increase packing life

▶Effective expeller prolongs packing life while reducing or eliminating flush water requirement.
